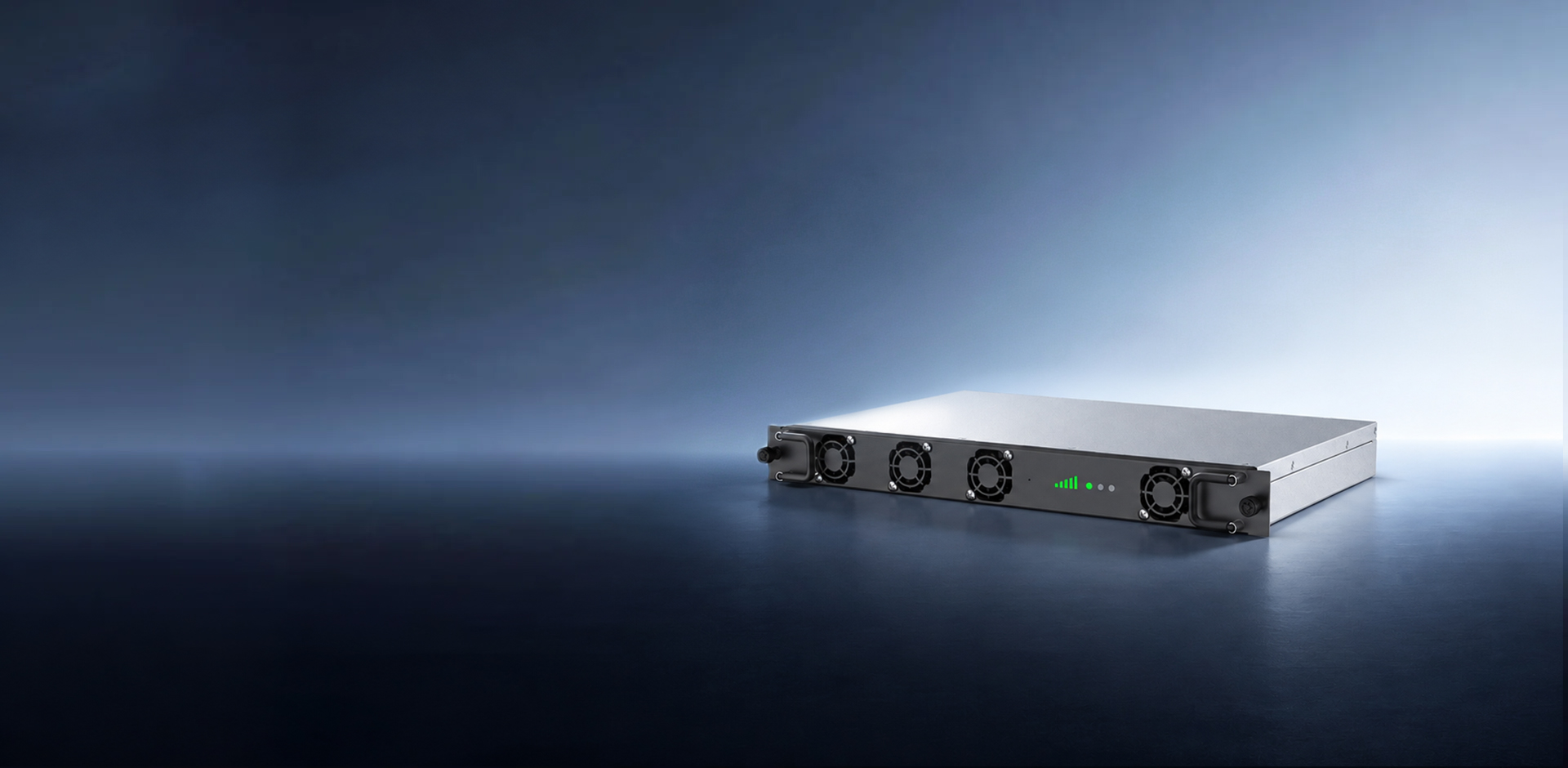

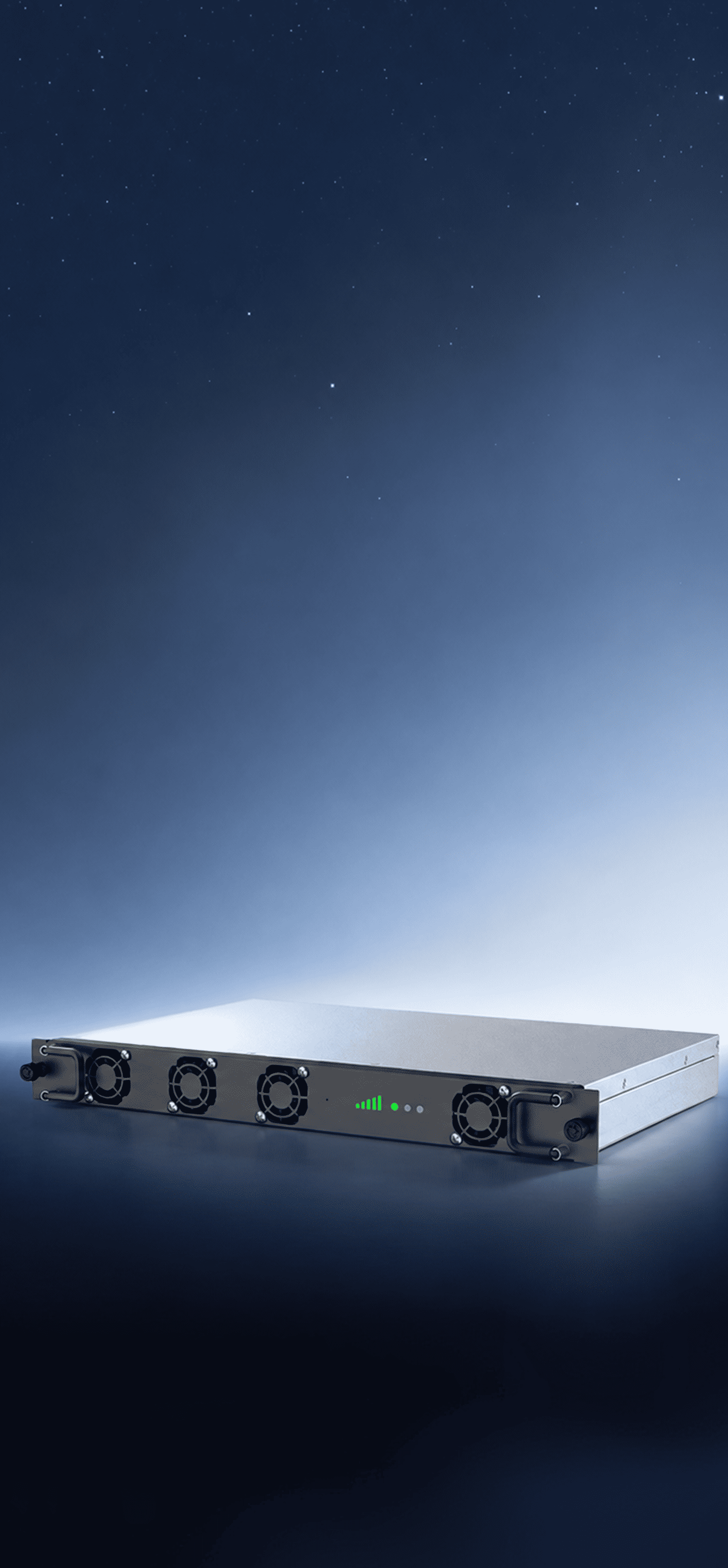

DC-ATS DC-ATS

DC-ATS

It monitors the status of two independent DC power supply circuits in real time and outputs a stable DC voltage. In the event of a fault in the main supply circuit, the DC-DC converter switches over rapidly to ensure the reliable operation of DC-powered loads and facilitate maintenance.
270VDC/400VDC
Rated Voltage
>98%
System Efficiency
Contact Us

Product Advantages

DC Fast Switching
  • · The system supports two independent DC inputs (270 Vdc or 400 Vdc), with a power-off switching time of <350 milliseconds
High-Power-Density Modules
  • · Each 1U module delivers 15 kW of power and supports 1.1x continuous overload operation
High Efficiency, Low Losses
  • · System efficiency exceeds 98%, with a peak efficiency of 98.8%
Flexible Scalability with Hot-Swap Capability
  • · Power module units support online hot-swapping, allowing system capacity to be flexibly configured according to actual user needs

Product Parameters

Product Parameters
  • DC-ATS
Rated Input Voltage
270VDC/400VDC
Input Voltage Range
260VDC~410VDC
Number of Input Channels
2 lanes
Module Input Current
<60A * Number of Modules
Input Protection
Input fitted with a separate circuit breaker
Rated Output Voltage
540V
Rated Output Power
15 kW × number of modules
Voltage Regulation Accuracy
±1.0 % (excluding drop)
Current Sharing Accuracy
±5%
Switching Features
Power-off time for main/auxiliary circuit switching < 350 ms
System Efficiency
>98%
Protective Features
Overcurrent, overvoltage, undervoltage, overtemperature, output short circuit
HMI
7-inch full-colour LCD screen
Protection Rating
IP20
Module Dimensions (W × D × H)
400 x 43.6 x 260 mm (including panel mounting lugs; width: 432 mm)
Operating Temperature
-5~50℃
Altitude
<1,500 m; use at reduced capacity at altitudes of 1,500 m and above
Cooling Method
Forced air cooling
