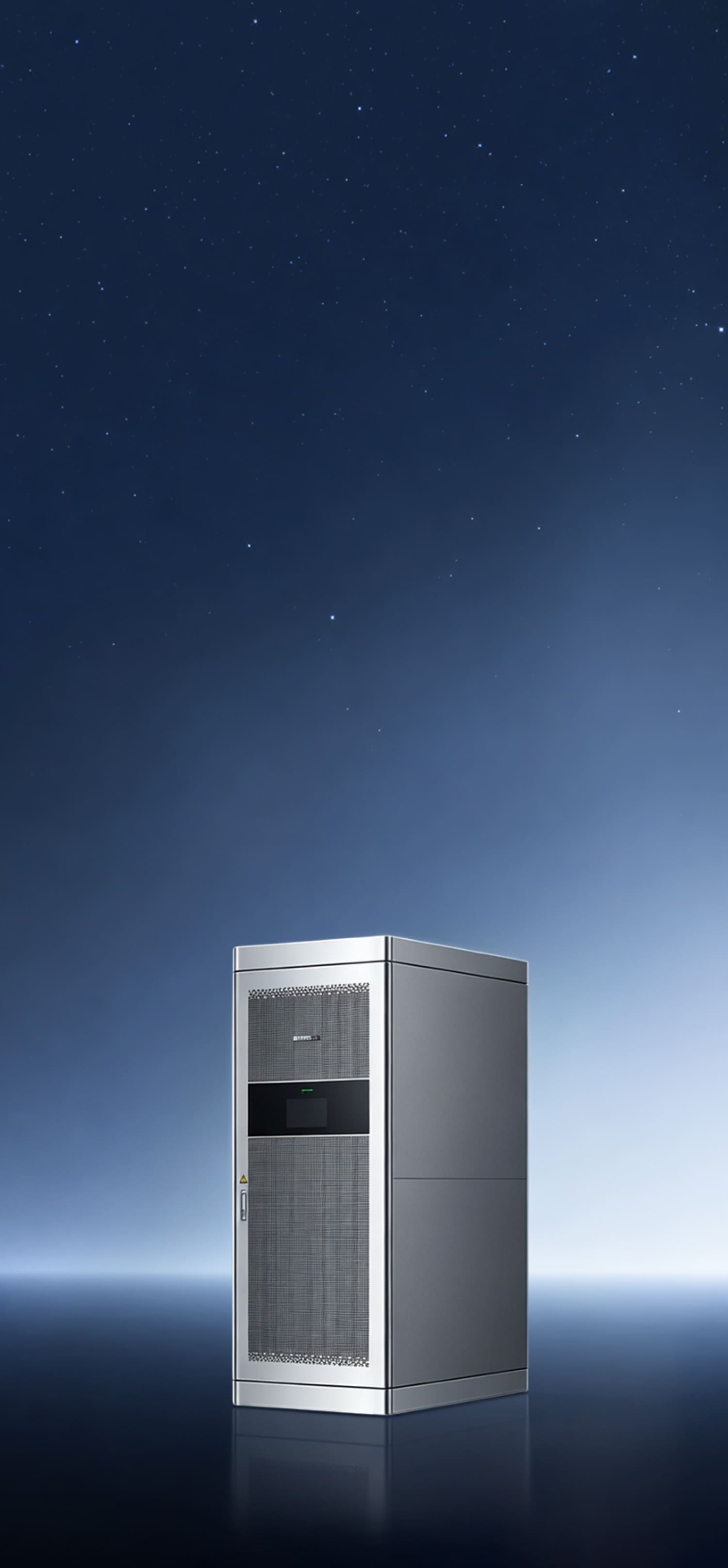

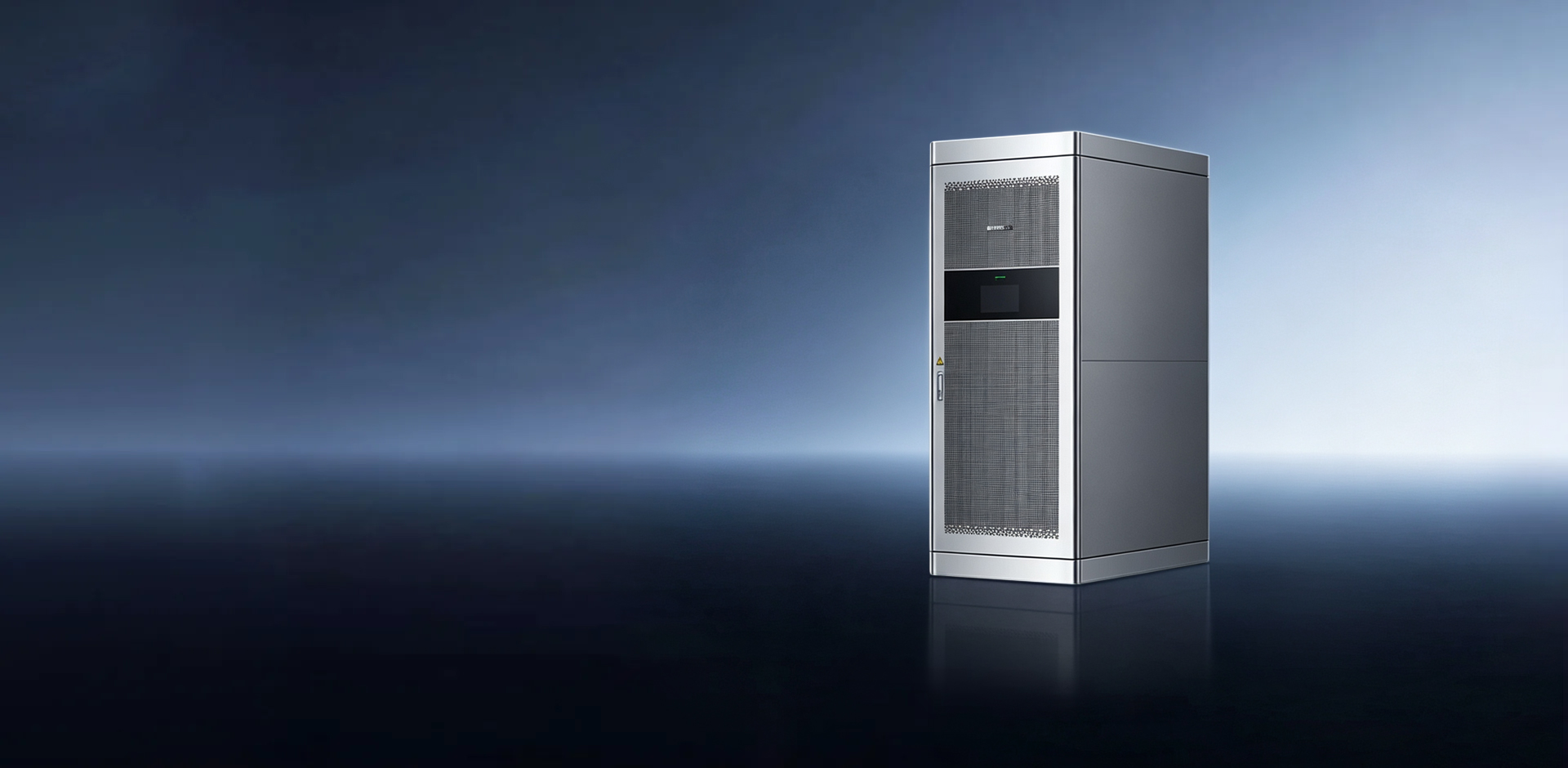

Simplified UPS
Featured with streamlined topology of overall efficiency ≥99%, it reduces power losses and helping lower data center PUE. Its modular, hot-swappable design enables online maintenance, saves floor space, and supports high-power AI racks. Compatible with lithium-ion and lead-acid batteries, it supports BMS integration to enable both backup power protection and time-of-use energy arbitrage, helping AIDCs reduce TCO.
380/400/415 V
Input Voltage
1.25MW
Rated Power
≥99%
Bypass Efficiency
Product Parameters
Product Parameters- Simplified UPS
AC Input
Three-phase, four-wire + PE, 380/400/415 V
Output Current Sharing Characteristics
≤5%In
Output Voltage Harmonics
≤1% @ 100% linear load; ≤3% @ 100% non-linear load
Switchover Time
0ms
Bypass Efficiency
≥99% at 100% load; ≥99% at 50% load
Overload Capacity
1.1In@1h；1.25In@10min
Parallel Expansion Capacity
Supports parallel connection of multiple units and modular expansion; supports hot-swapping and online maintenance
Power Factor
1
Cooling Method
Forced air cooling
Operating Frequency
50/60Hz
Operating Temperature
0℃~40℃
Altitude
3000m
Operating Humidity
0–95 %, non-condensing
Protection Rating
IP20
